Wire Feeding System
Leading Manufacturers, Exporters, Wholesaler and Retailer of CaSi Cored Wire Feeder, CCM Mould Aluminum Wire Feeder, Four Strand Wire Feeding System and Two Strand Wire Feeding System from Thane.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Wire Diameter | 6 Mm to 21 Mm |
| Speed | 15-300 Mtr/min Adujstable Through Plc Operating Systems with Vfd Control upto 4 Strand Machine |
| Location | VD/LADLE/LRF/ARS/RH |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Wire Diameter | 2 Mm to 6mm |
| Speed | 25 Mtr/min Adujstable Through Vfd Control |
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Model No. | SCS/WFM/4/440 |
| No. of Strands | Four Strand |
| Size of Cored Wire | Cored / Aluminum / Sulphur Wire 6mm Min.-16mm Max. |
| Size of Aluminium/solid Wire | Aluminium Wire 9mm Min.-13mm Max |
| Shape of Wire | Round/square/rectangular/polygonal |
| Telescopic Guide Pipe | Lifting Up &down / Swiveling Through Pneumatic Actuated |
| Feeding Procedure | Sequentially – 2 Simultaneously – 2 |
| Speed Range Mtr/min. | 0-300mtr/min. Adjustable |
| Technique of Feed | Horizontal / Vertical |
| Accuracy of Feed | Tolerence of +/-500mm of Feed |
| Forward / Reverse Jog Speed | 30 Mtr/min |
| Indication Range of Counter | 0-9999 Mtr Provided for Pre-setting Length of Wire to Be Fed. |
| Method of Setting the Feed | Through Speed Potentiometer Located in the Remote Control Panel |
| Location | LF/VD /ARS /RH |

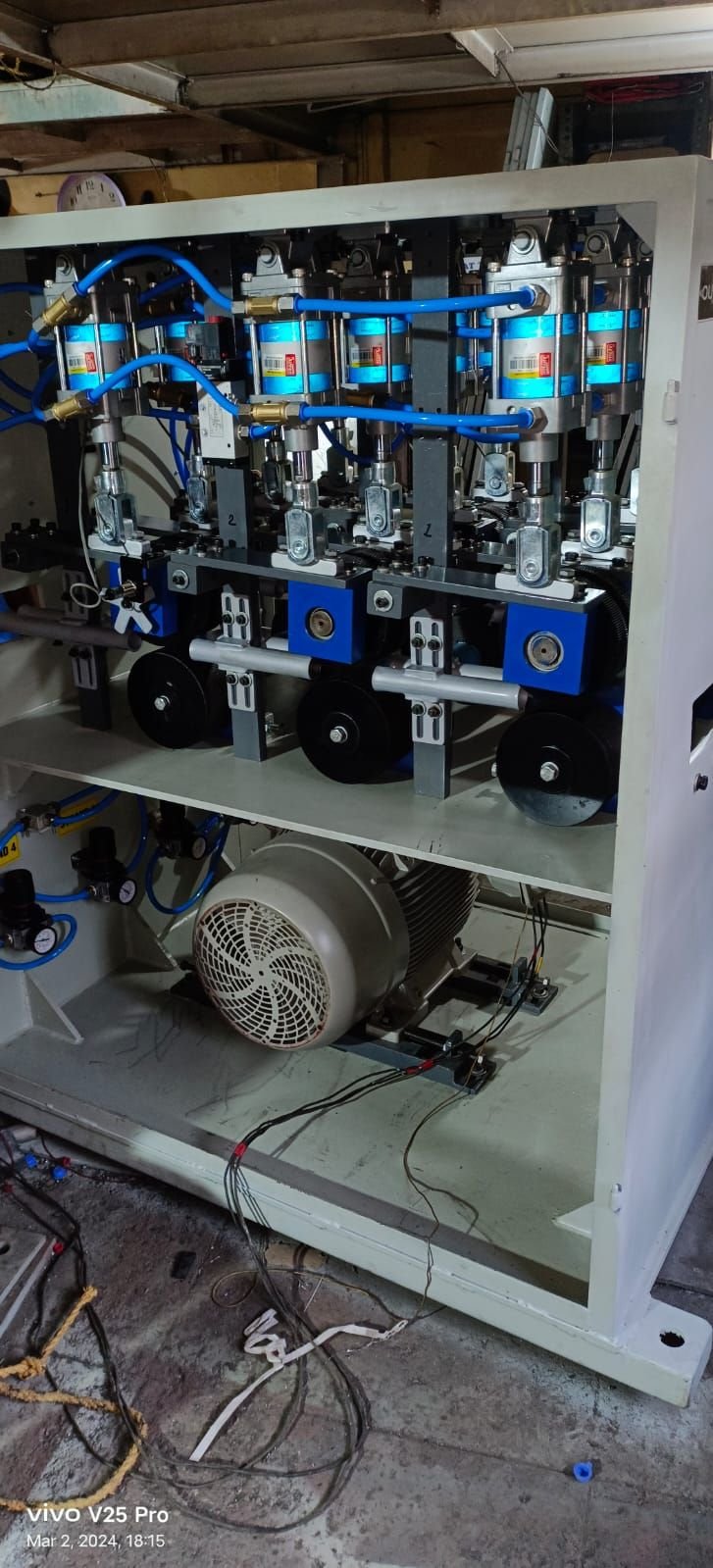

| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Model No. | Scs/wfm/2/222 |
| No. of Strands | Two Strand |
| Size of Cored Wire | Cored / Aluminum / Sulphur Wire 6mm Min.-16mm Max. |
| Size of Aluminium/solid Wire | Aluminium Wire 9mm Min.-13mm Max |
| Shape of Wire | Round/square/rectangular/polygonal |
| Telescopic Guide Pipe | Lifting Up &down / Swiveling Through Pneumatic Actuated |
| Feeding Procedure | Sequentially – 1 Simultaneously – 2 |
| Speed Range Mtr/min | 0-300mtr/min. Adjustable |
| Technique of Feed | Horizontal / Vertical |
| Accuracy of Feed | Tolerence of +/-500mm of Feed |
| Forward / Reverse Jog Speed | 30 Mtr/min. |
| Indication Range of Counter | 0-9999 Mtr Provided for Pre-setting Length of Wire to Be Fed. |
| Method of Setting the Feed | Through Speed Potentiometer Located in the Remote Control Panel |
| Location | Lf/vd /ars /rh |
