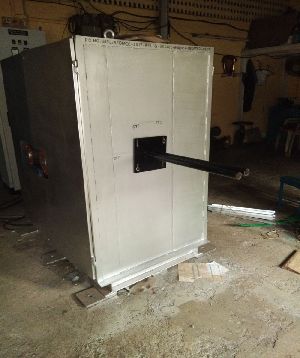

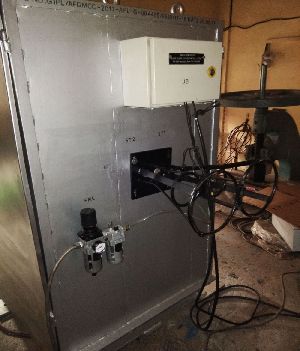

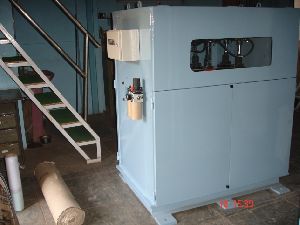

Two Strand Wire Feeding System

Link Copied
Business Type Manufacturer, Exporter, Supplier, Retailer
Model No. Scs/wfm/2/222
No. of Strands Two Strand
Size of Cored Wire Cored / Aluminum / Sulphur Wire 6mm Min.-16mm Max.
Click to view more

Product Details

Size of Aluminium/solid Wire
Aluminium Wire 9mm Min.-13mm Max
Shape of Wire
Round/square/rectangular/polygonal
Telescopic Guide Pipe
Lifting Up &down / Swiveling Through Pneumatic Actuated
Feeding Procedure
Sequentially – 1 Simultaneously – 2
Speed Range Mtr/min
0-300mtr/min. Adjustable
Technique of Feed
Horizontal / Vertical
Accuracy of Feed
Tolerence of +/-500mm of Feed
Forward / Reverse Jog Speed
30 Mtr/min.
Indication Range of Counter
0-9999 Mtr Provided for Pre-setting Length of Wire to Be Fed.
Method of Setting the Feed
Through Speed Potentiometer Located in the Remote Control Panel
Location
Lf/vd /ars /rh
